12/24V Car Relay Tester 4 & 5 Pin Diagnostic Tool

Regular price $19.00
Sale price $19.00 Regular price $36.00
Unit price
Compare Ask a question

Ask a Question

* Required fields

 Size guide Share
12/24V Car Relay Tester 4 & 5 Pin Diagnostic Tool

12/24V Car Relay Tester 4 & 5 Pin Diagnostic Tool

Regular price $19.00
Sale price $19.00 Regular price $36.00
Unit price
Product description
Shipping & Return

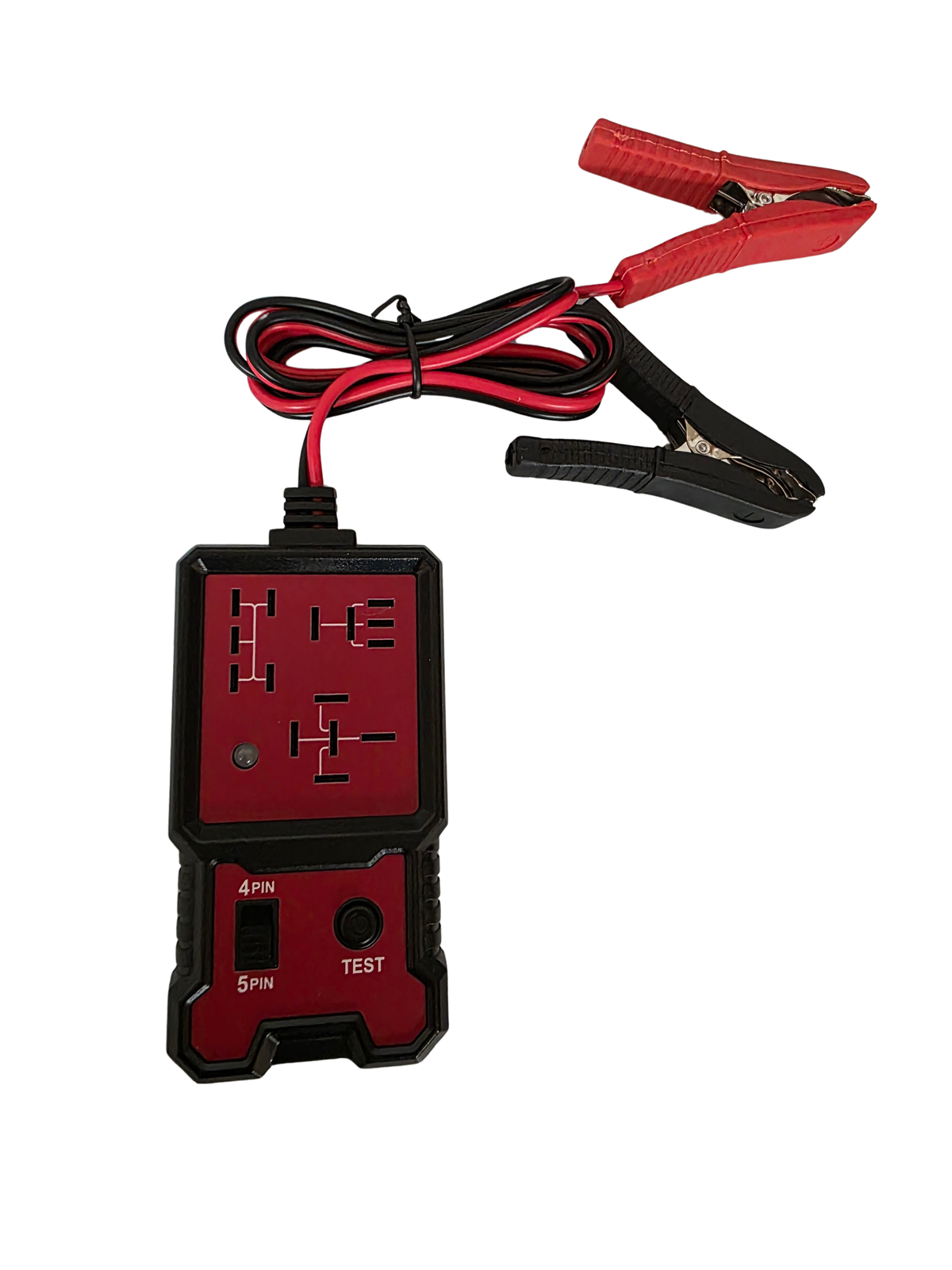

Quickly diagnose coil and contact issues in standard 4-pin and 5-pin automotive relays with this high-precision 12V/24V Car Relay Tester. Engineered for automotive technicians, fleet mechanics, and DIY enthusiasts, this diagnostic tool accurately tests relay pin configuration, contact closing/opening actions, and overall switch functionality in seconds.

Key Features & Benefits:

  • Versatile Diagnostic Capability: Designed to test both 4-pin and 5-pin automotive relays across 12V and 24V vehicle electrical systems.
  • Automatic Health Check: Evaluates relay contacts, opening/closing cycles, and terminal performance to identify faulty coils or burned-out contacts.

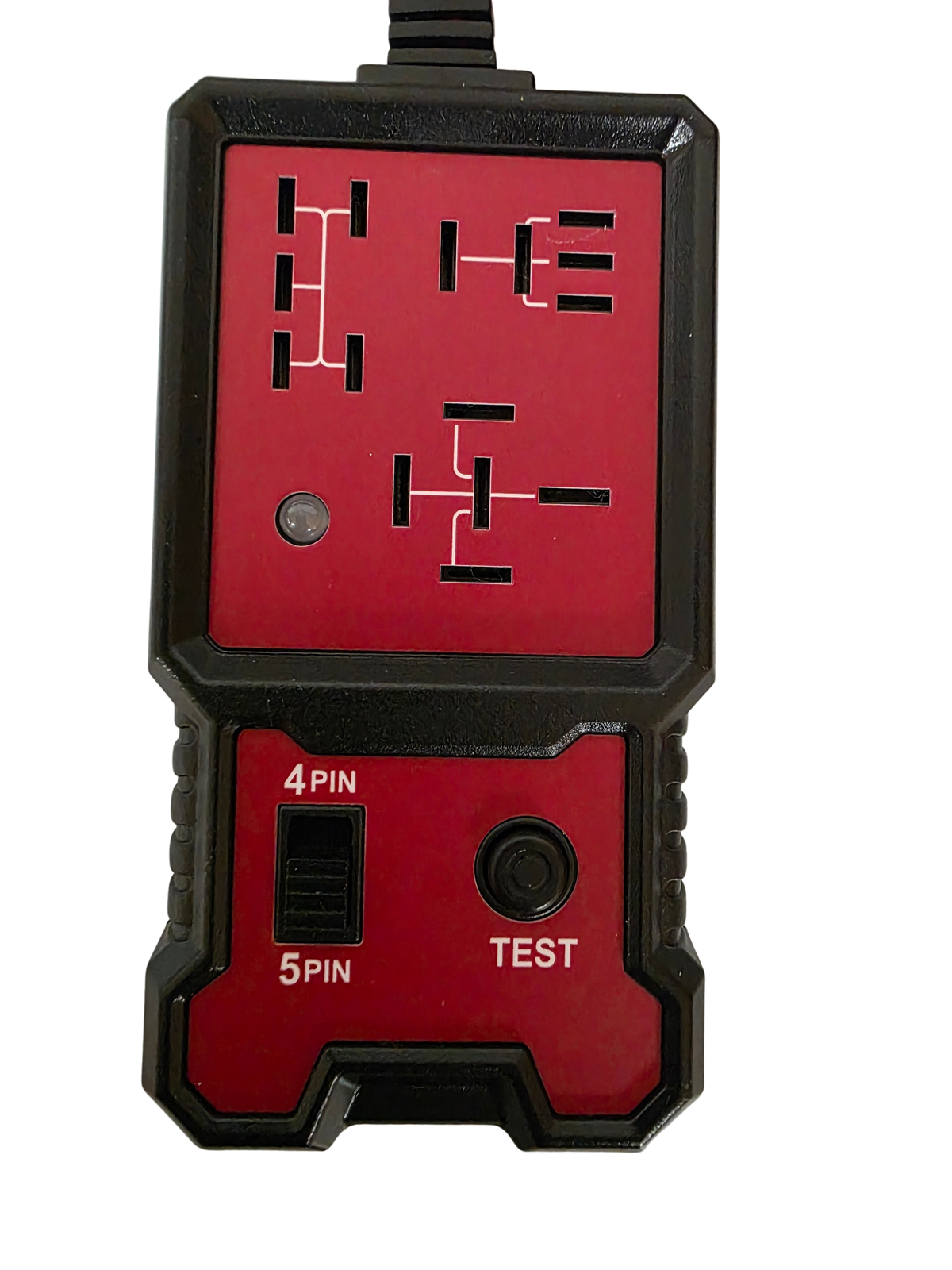

  • Clear LED Indicators: Features intuitive visual pass/fail status lights for fast, hassle-free troubleshooting.

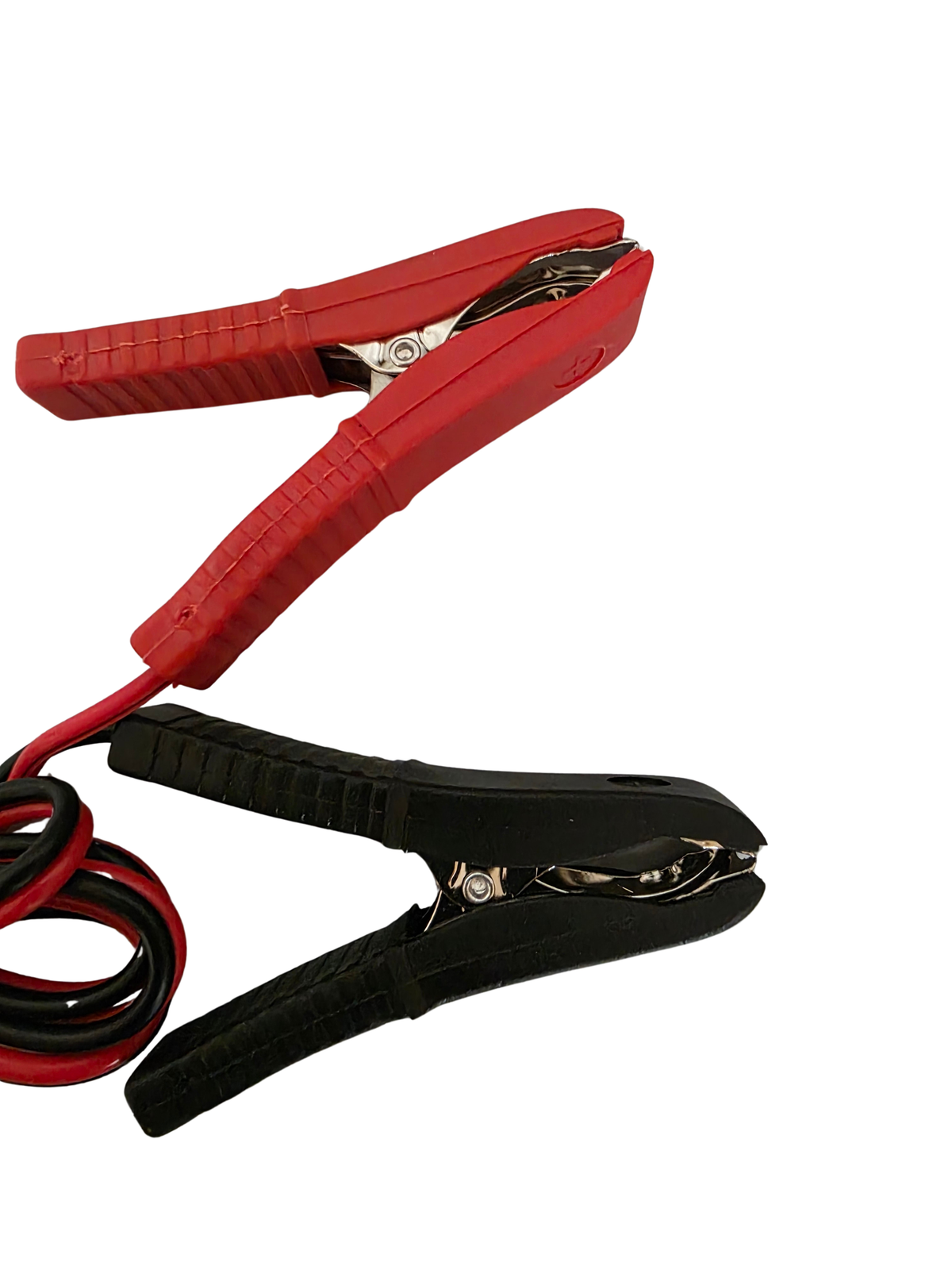

  • Heavy-Duty Alligator Clips: Secure color-coded battery clamps ensure stable power connections directly from the vehicle battery.
  • Compact & Portable Design: Lightweight handheld construction fits easily into any tool chest, glove compartment, or mobile service bag.

Product Specifications:

  • Model / MPN: CNB-707
  • Voltage Compatibility: 12V / 24V DC
  • Supported Pin Configurations: 4-Pin, 5-Pin
  • Power Source: Vehicle Battery Powered (No internal batteries required)
  • Color: Red / Black
